Perfect water pressure – finally compact and easy to install

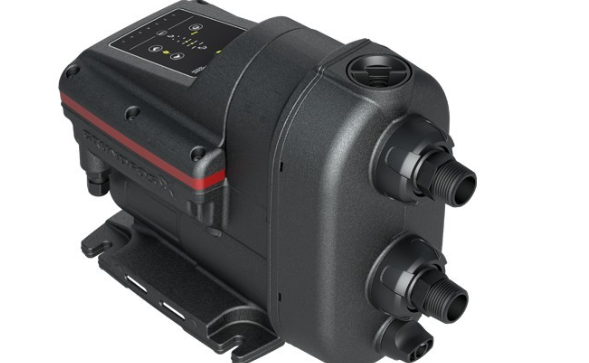

SCALA2 is a fully integrated water booster pump providing perfect water pressure in all taps at all times – even with multiple taps and showers running at the same time. It packs pump, motor, tank, sensor, drive and non-return valve into one compact unit. And with its intelligent pump control, SCALA2 automatically adjusts performance to both inlet pressure and water consumption in the home. Thanks to a water-cooled motor, SCALA2 even offers one of the lowest noise levels of any booster on the market.

What is intelligent pump control?

SCALA2 features a built-in sensor, which constantly measures the discharge pressure. If the pressure drops below the desired level, SCALA2 boosts its operation immediately to compensate for the loss of pressure. We call it intelligent pump control and the result is perfect water pressure.

Benefits

• Perfect water pressure: Intelligent pump control adjusts operation automatically
• Low noise: As quiet as a modern dishwasher (47 dB(A) in typical use)
• Easy selection: One variant for all domestic boosting needs
• Easy installation: Compact, all-in-one solution, plug-and-pump
• Easy to operate: User-friendly control panel
• Reliable operation: Dry-running protection, anti-cycling
• Long lifetime: Quality-tested to perfection, maintenance-free

Applications

SCALA2 is the perfect choice for residential buildings with up to 3 floors and 8 taps.

• Boosting from mains: Increases the water pressure delivered by city mains
• Boosting from tanks: Increases water pressure from roof tanks, break tanks and ground tanks, including rainwater tanks.
• Boosting from wells: Pumps water from a depth of 8 metres

Suitable for both Indoor and outdoor installation X4D and Enclosure type 3(US).
